PartedUtil VMware ESXi 磁區管理指令

Posted by admin on 12 六月, 2014 20:16

VMware ESXi Server 新增儲存空間,安裝全新的硬碟後,在 VMware vSphere Client 裡很容易就可完成設定。可是如果安裝的是其他作業系統使用過的硬碟,部分版本的 VMware vSphere Client 連線到 VMware ESXi 時,受限於只能從「未配置」的磁區,格式化為儲存空間,以致常見無可用空間情形。一般如未先行清空磁區,就得運用磁區管理指令了。還好,這現象在更新 VMware ESXi 5 後有了改善…

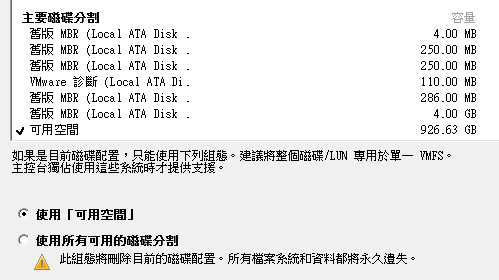

▲ ESXi 更新後新增儲存空間將為方便。

即便如此仍想用指令時,需注意舊版 VMware ESXi Server 使用與 Linux 相同的 fdisk 指令,目前的 ESXi 5 受限於 fdisk 指令無法管理 GPT 磁區,已建議改用 partedUtil 指令。現在就以清除 NTFS 磁區為例,練習 partedUtil 指令操作。


▲ ESXi 安裝未清除磁區硬碟,無法新增儲存空間的錯誤訊息。

【作業環境】
VMware ESXi 5.5.0 Build 1746018
VMware vSphere Client 5.5.0 Build 1618071
VMware vSphere Web Client 5.5.0 Build 1588022

【清除磁區前的準備】
使用「ls /vmfs/devices/disks/」指令,查詢 VMware ESXi Server 硬碟安裝情形…

~ # ls /vmfs/devices/disks/

t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:1
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:2
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:3
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:5
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:6
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:7
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:8
t10.ATA_____MB1000ECWCQ_______________Z1W0AXXX____________:9
t10.ATA_____ST2000DL0032D9VT166_____________________5YD1ZXXX
t10.ATA_____ST2000DL0032D9VT166_____________________5YD1ZXXX:1
t10.ATA_____ST2000DL0032D9VT166_____________________5YD1ZXXX:2
vml.010000202020202020202020202020355944315a594b3553543230303
vml.010000202020202020202020202020355944315a594b3553543230303:1
vml.010000202020202020202020202020355944315a594b3553543230303:2
vml.0100005a3157304144584e2020202020202020202020204d423130303
vml.0100005a3157304144584e2020202020202020202020204d423130303:1
vml.0100005a3157304144584e2020202020202020202020204d423130303:2
vml.0100005a3157304144584e2020202020202020202020204d423130303:3
vml.0100005a3157304144584e2020202020202020202020204d423130303:5
vml.0100005a3157304144584e2020202020202020202020204d423130303:6
vml.0100005a3157304144584e2020202020202020202020204d423130303:7
vml.0100005a3157304144584e2020202020202020202020204d423130303:8
vml.0100005a3157304144584e2020202020202020202020204d423130303:9

列表顯示安裝兩顆硬碟,從硬碟編號、磁區數量,即可分辨出系統磁碟與另一顆準備刪除磁區的硬碟。

【partedUtil 指令用法】

~ # partedUtil ?

查詢指令用法如下:

 Get Partitions : get <diskName>
 Set Partitions : set <diskName> ["partNum startSector endSector type attr"]*
 Delete Partition : delete <diskName> <partNum>
 Resize Partition : resize <diskName> <partNum> <start> <end>
 Get Partitions : getptbl <diskName>
 Set Partitions : setptbl <diskName> <label> ["partNum startSector endSector type/guid attr"]*
 Fix Partition Table : fix <diskName>
 Create New Label (all existing data will be lost): mklabel <diskName> <label>
 Show commonly used partition type guids : showGuids
 Get usable first and last sectors : getUsableSectors <diskName>
 Fix GPT Table interactively : fixGpt <diskName>

【磁區清除】
清除磁區時使用下列指令及參數:

~ # partedUtil delete "/vmfs/devices/disks/DiskName" Partition Number

例如:

~ #  partedUtil delete "/vmfs/devices/disks/ t10.ATA_____ST2000DL0032D9VT166________________5YD1ZXXX" 2
~ #  partedUtil delete "/vmfs/devices/disks/ t10.ATA_____ST2000DL0032D9VT166________________5YD1ZXXX" 1

確認磁區清除狀態…

~ # ls /vmfs/devices/disks/

顯示該已清除硬碟磁區規畫…
……
t10.ATA_____ST2000DL0032D9VT166___________________5YD1ZXXX
……

【登入主機新增儲存空間】
執行 VMware vSphere Client …
組態 > 硬體 > 儲存區 > 新增儲存空間 > 儲存空間類型:磁碟 / LUN > 下一步 …
這樣就能將硬碟全部空間格式化為 VMFS 檔案系統了。
